SEK-SDP8XX

SEK-SDP8XX is a SDP8xx differential pressure evaluation kit. The SDP800 sensor family is Sensirion’s series of digital differential pressure sensors designed for high-volume applications The sensors measure the pressure of air and non-aggressive gases with superb accuracy and no offset drift. The sensors cover a pressure range of up to ±500 Pa (±2 inch H2O / ±5 mbar) and deliver outstanding accuracy, also at the bottom end of the measuring range. The SDP800 Series features a digital 2-wire I2C interface, which makes it easy to connect directly to a microprocessor. The outstanding performance of these sensors is based on Sensirion’s patented CMOSens® sensor technology, which combines the sensor element, signal processing and digital calibration on a small CMOS chip. The differential pressure is measured by a thermal sensor element using flow-through technology.

• Excellent repeatability, no drift, no offset
• Extended feature set – smart averaging
• Calibrated and temperature compensated

Contenido

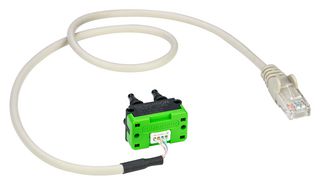

1 x SDP810-500 Pa, 1 x connector cable, Quick start guide.

Notas

1x SEK-SensorBridge required.
