RT-ZC31

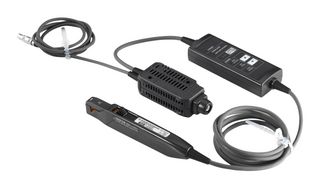

RT-ZC31 is a clamp-on current probe that features high current-detection sensitivity and broad frequency band. The probe uses three current ranges to detect current waveforms from a few hundred µA to 50 A. By clamping on the conductor to be measured, the current waveform is captured easily without interrupting the electric circuit. The sensor head has a clamp design that makes it possible to easily observe current waveforms while current continues to flow through the conductor being measured.

• Three current measurement ranges: 0.1 V/A, 1 V/A, and 10 V/A
• Can observe low-current waveforms at the high sensitivity of 10V/A
• LED warnings indicate overload and unlocked sensor head
• Broadband frequency characteristics DC to 120 MHz
• Demagnetization and automatic zero adjustment functions make it easy to get ready for measurement

Contenido

AC/DC current probe, User manual, Carrying case, R&S RT-Zxx data sheet, Calibration certificate, Documentation of calibrated values.
