RTK551406BS00000BE

RTK551406BS00000BE is a Renesas starter kit for RX140. Renesas starter kit for RX140 is the perfect starter kit for developers who are new to the RX140 (code flash 256KB, pin count 80-pin). The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment installer for Renesas starter kit from the Renesas website and start evaluating RX140 performance, right after unboxing the Renesas starter kit.

• Devices: RX140 (R5F51406BDFN: supported encryption function, code flash 256KB, pin count 80-pin)
• RX140 builds in security function, AES encryption, true random number generator can be evaluated
• Touch feature (self-capacitive type) can be evaluated
• Application combining functions using FIT (Firmware Integration Technology) module can be evaluated
• Required IBM-PC compatible PC(need USB interface, processor 1GHz over), OS: Windows 11/10/8.1

Contenido

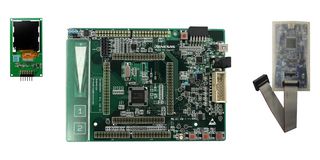

CPU board, Pmod compatible colour LCD board, E2 lite emulator.
