Avisarme cuando esté de nuevo en stock
Cantidad | Precio (sin IVA) |
---|---|
1+ | 20,050 € |
5+ | 19,460 € |
10+ | 18,850 € |
20+ | 18,250 € |
50+ | 17,640 € |
Información del producto
Resumen del producto

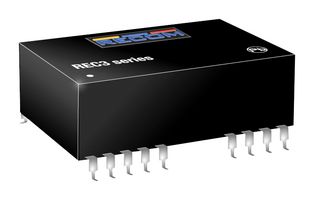

The REC3-0515DR/H1 is a 2-output 3W board-mount regulated ECONOLINE DC/DC Converter containing a built-in linear regulator to give a regulated, load independent constant voltage output. It offers 5VDC input and ±15VDC output voltages. The converter is designed to run from a regulated supply and is typically used to provide an isolated output or to generate dual rails from a single rail supply. The converter can deliver 140% rated power for short periods of time to cope with applications with large capacitive loads or high start-up currents.
- Continuous short-circuit protection
- Regulated output
- Internal SMD design
- 1kVDC Isolation
- ±1000µF Maximum capacitive load
Advertencias
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Especificaciones técnicas
ITE y Médicas
1:1
2 Salidas
100mA
100mA
1kV
Fijo
32mm
20.3mm
5.75V
No SVHC (21-Jan-2025)
DIP
3W
15V
-15V
Regulado
5V
Agujero Pasante
10.2mm
4.5V
REC3-R Series
Documentos técnicos (2)
Legislación y medioambiente
País donde se realizó la mayor parte del proceso de producciónPaís de origen:Taiwan
País donde se realizó la mayor parte del proceso de producción
RoHS
RoHS
Certificado de conformidad del producto
