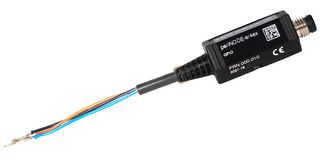

PRN.000.010

PRN.000.010 is a periNODE smart adapter. It has 2 in-/output channels and connects directly to sensors or actuators with 24V GPIO via a 4x0.25mm2 cable. It turns the analogue, passive sensor or actuator into a smart, active network participant that communicates via Ethernet with any IT-system or data hub. periNODE permits the configuration of data communication intervals to meet user-specific demand, thereby reducing network traffic and redundant data collection. periNODE GPIO facilitates a wide variety of IoT and IIoT use cases.

• M8 male connector according to IEC 63171-6:2020(style 6P-M8C without shielding)
• 100BASE-T1 Single Pair Ethernet (IEEE 802.3bw) communication
• IPv6 TCP/UDP connectivity
• HTTP-server hosting web-GUI with sensor values and configuration page
• RESTful API for access to sensor values and configuration
• Sensor value via MQTT
• Zeroconf network: mDNS resolving unique periNODE-hostname, DNS service discovery for https service
• Security through end-to-end encryption
• IP67 rated
• Temperature range from -40°C to +70°C

Notas

periNODE is not designed for real-time or safety-critical applications.
