ENW89849AYKF

ENW89849AYKF is a PAN1740 series BEACON experimenter kit. It enables designers to create custom applications and beacon specific parameters (UUID, Major/Minor ID). PAN1740 Bluetooth low energy beacon is based on one of the world’s most energy efficient RF Modules, the Panasonic PAN1740 Series. The ultra-low power consumption of less than 5mA in Tx mode enables the PAN1740 Beacon to run on a single Coin Cell Battery for years. This compact Beacon is just 26 x 24mm and includes an antenna, ARM CORTEX M0, 256kB flash and CR2032 coin cell battery holder.

• Based on BT Smart System-on-Chip PAN1740
• ARM CORTEX M0 with 256Kb memory
• 26 x 24mm with antenna
• FCC/IC/CE certified

Contenido

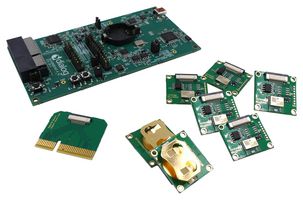

Five PAN1740 Beacon ETUs (standard beacon with an 18 pin female connector compatible with the Beacon Kits adaptor cable. ), Dialog Pro motherboard, Beacon adapter board, Adaptor cable.
