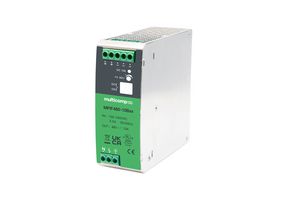

MPIF480-10B24

MPIF480-10B24 is an AC-DC DIN rail mount power supply. This power supply (AC/DC converter) featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. This product offers a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. This light weight AC-DC converter have an extremely compact design and the standard rail (48mm) installation for space saving. With good EMC performance, compliant with international IEC/EN/UL62368, UL61010, UL508 standards for EMC and safety.

• Universal 85V AC 264V AC or 120V DC to 370V DC input voltage
• Accepts AC or DC input (dual-use of same terminal)
• High I/O isolation test voltage up to 3000VAC
• DC OK function and active PFC, PF <gt/> 0.95
• Low ripple & noise
• Output short circuit, over-current, over-voltage, over-temperature protection
• Ultra slim design with 48mm width
• 480W output power, 24V/20A nominal output voltage and current (Vo/Io)
• 94% efficiency (typ) at 230VAC
• Operating ambient temperature range from -30°C to +70°C

Notas

Standards: EN61558-1
