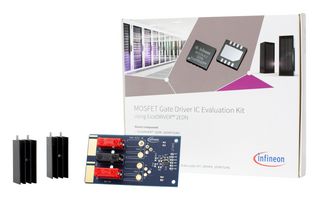

KITDRIVER2EDN7524GTOBO1

Evaluation kit for EiceDRIVER™ 2EDN7524G dual-channel low side non-isolated gate driver IC. The complete driving circuitry is integrated into the board to allow a simple and practical step-by-step discovery of the 2EDN7524R characteristic and to evaluate the influence of the surrounding driving circuitry on the signal delivered to the load. The evaluation kit requires an external function generator and a DC power supply to provide the input signals to the 2EDN7524R. Target application is switched-mode power supplies (SMPS).

• Possible to evaluate influence of gate load (Rg or Cgs) on driving behaviour of the 2EDN7524G
• Easy to replace and test different power MOSFETs in TO-220 package
• 10V to 20V supply voltage
• Low side switch topology
