¿Necesita más?
Cantidad | Precio (sin IVA) |
---|---|
1+ | 1.390,000 € |
Información del producto
Resumen del producto

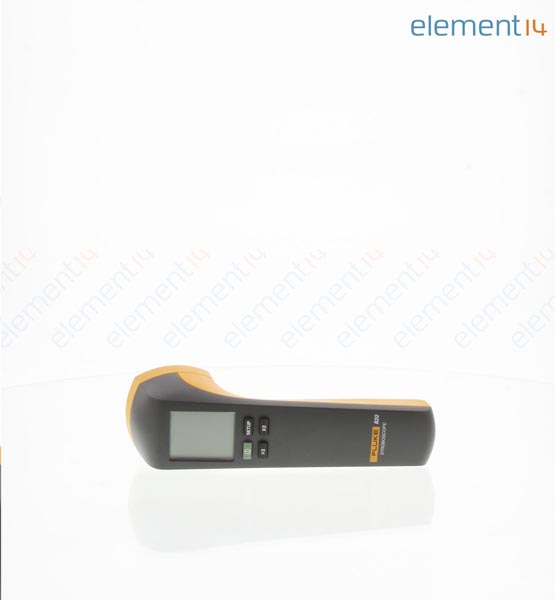

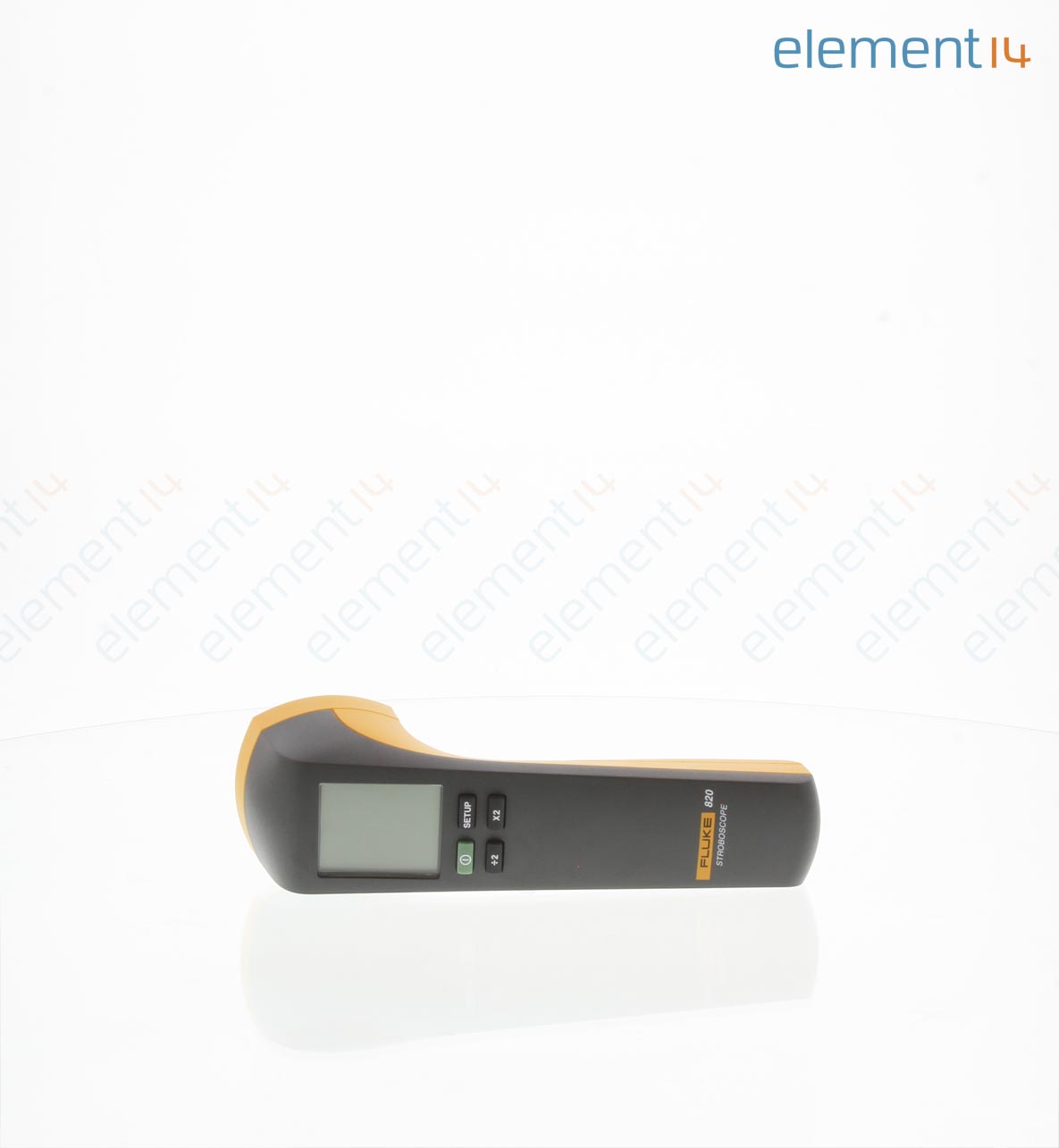

FLUKE 820-2 is an LED stroboscope. It is a rugged, compact, easy-to-use stroboscope for checking the rotating speed of machinery without physical contact or the need for reflective tape. It provides a high-efficiency LED solid-state light source with uniform flash characteristics that allow for higher flash rates-30-300,000FPM (flashes per minute). It simplifies the process, allowing user to perform stop motion diagnostics without actually stopping or making contact with the machine you are working on.
- Includes digital pulse width modulation for exceptionally sharp images at high speeds
- Features quartz-accuracy control system for high accuracy–0.02% (+/- 1 digit)
- Provides a multi-line LCD display
- Features simple push button operation with 2x and ÷2 buttons for easy adjustment
- Size (HxWxL) is 57.1mm x 60.9mm x 190.5mm
- Operating temperature range from 0°C to +45°C
- Approximately 6500K light colour
- 4,800lx at 6000FPM at 30cm emission output
- 50μs connection minimum pulse width (external trigger)
- 1m drop impact resistance
Contenido
LED stroboscope, Protective case, External trigger connector.
Advertencias
Unlock more info! Copy and paste this link: www.fluke.co.uk/freegift
Notas
Promotion: Buy one, get one free, valid until 31st July 2025 (Europe only). Redeem your gift from Fluke. For more info, check the Promotion document or visit Fluke storefront. Calibration services available (Europe only). Visit our calibration service page for details.
Especificaciones técnicas
30FPM a 300000FPM
-
0°C
-
0.02%
-
45°C
No SVHC (15-Jun-2015)
Productos asociados
6 productos encontrados
Legislación y medioambiente
País donde se realizó la mayor parte del proceso de producciónPaís de origen:Germany
País donde se realizó la mayor parte del proceso de producción
RoHS
RoHS
Certificado de conformidad del producto
