HFBR-4505Z
Conector de Fibra Óptica, Vlink, Plástico Óptico, 1mm, Cuerpo de Plástico, HFBR-45XXZ
¿Necesita más?
| Cantidad | Precio (sin IVA) |
|---|---|
| 1+ | 2,250 € |
| 10+ | 1,790 € |
| 25+ | 1,760 € |
| 50+ | 1,740 € |
| 100+ | 1,400 € |
| 500+ | 1,220 € |
Información del producto
Resumen del producto

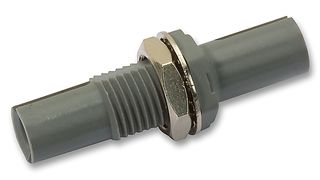

The HFBR-4505Z is a grey bulkhead/feed-through plastic Fibre Connector provide a snap-in action when mated to Versatile Link components. The simplex connector is colour-coded to facilitate identification of transmitter and receiver connections. Duplex connectors are keyed so that proper orientation is ensured during insertion. If the POF cable/connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive. The connector is made of a flame retardant VALOX UL94V-0 material. This connector mates two simplex connectors for panel/bulkhead feed-through of HFBR-4501Z/4511Z terminated plastic fibre cable. Maximum panel thickness is 4.1mm. This connector can serve as a cable in-line splice using two simplex connectors. This connector is not compatible with POF duplex, POF simplex latching or HCS connectors.
- Compatible with Avago Versatile Link family of connectors and fibre optic components
- 1mm Diameter plastic optical fibre (POF) in two grades
Especificaciones técnicas
Vlink
1mm
HFBR-45XXZ
Plástico Óptico
Cuerpo de Plástico
Reaction products of 1,3,4-thiadiazolidine-2,5-dithione, formaldehyde and 4-heptylphenol, branched and linear (RP-HP) (23-Jan-2024)
Documentos técnicos (1)
Productos asociados
8 productos encontrados
Legislación y medioambiente
País donde se realizó la mayor parte del proceso de producciónPaís de origen:Philippines
País donde se realizó la mayor parte del proceso de producción
RoHS
RoHS
Certificado de conformidad del producto
