MAX17332X2EVKIT#

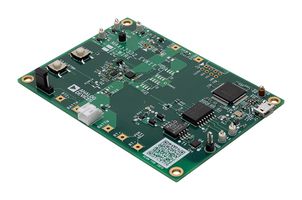

MAX17332X2EVKIT# is a MAX17332 evaluation kit (EV kit). It is a fully assembled and tested surface-mount PCB that evaluates the standalone charger, fuel gauge IC with protector and optional SHA-256 authentication for 1 cell lithium-ion/polymer batteries. The MAX17332 EV kits include the IC evaluation board with integrated I2C interface and USB micro-B cable.

• ModelGauge m5 algorithm
• Charges, monitors and protects a 1S battery
• Full protection solution on-board for evaluation
• Battery voltage (VBATT) range of +2.16V to +4.9V with default hardware
• Input voltage up to 5.7V
• Default current range -5A (discharge) to +2.56A (charge) with 10mohm sense resistor
• Two thermistor measurements
• On-board I2C communication interface with built-In MAXUSB interface
• Windows 7 or newer compatible software
• Proven PCB layout

Contenido

Evaluation board, USB micro-B cable.

Notas

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
