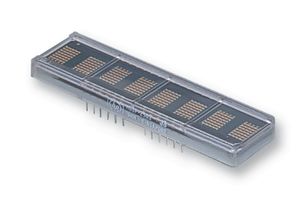

HCMS-2975

The HCMS-2975 is a high performance Dot Matrix Display driven by onboard CMOS ICs. The display can be directly interfaced with a microprocessor, thus eliminating the need for cumbersome interface components. The serial IC interface allows higher character count information displays with a minimum of data lines. A variety of colours, font heights and character counts gives designers a wide range of product choices for their specific applications and the easy to read 5 x 7 pixel format allows the display of uppercase, lower case, Katakana and custom user-defined characters. The display is stackable in the x and y-directions, making them ideal for high character count displays.

• Easy to use
• Interfaces directly with microprocessors
• 0.15" character height in 4, 8 and 16 (2 x 8) character packages
• 0.20" character height in 4 and 8 character packages
• Rugged X and Y stackable package
• Serial input
• Convenient brightness controls
• Wave solderable
• Offered in five colours
• Low power CMOS technology
• TTL compatible

Applications

Communications & Networking, Portable Devices, Computers & Computer Peripherals, Medical, Test & Measurement, Avionics, Industrial, Imaging, Video & Vision

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
