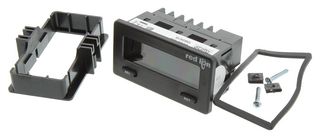

CUB5PB00

The CUB5PB00 is a 5-digit CUB®5P miniature electronic Process Meter provides the user the ultimate in flexibility, from its complete user programming to the optional set-point control and communication capability. The CUB5 accepts a DC voltage or current input signal and provides a display in the desired unit of measure. The meter also features minimum and maximum display capture, display offset, units indicator and programmable user input. The display can be toggled either manually or automatically between the selected displays. Transmissive LCD with selectable red/green LED backlight, viewing angle optimized. Display colour change capability with output state when using an output module. The capability of the CUB5 can be easily expanded with the addition of option cards. The set-point output cards are field installable with programmable set-point. Serial communications capability for RS232 or RS485 can be added with a serial option card.

• Minimum and maximum display capture
• Front panel or crimson programmable
• Display colour change capability at set-point output
• IP65/NEMA-4X Protection rating

Advertencias

Do not use this meter to directly command motors, valves or other actuators not equipped with safeguards. To do so can be potentially harmful to persons/equipment in the event of fault to the meter.
