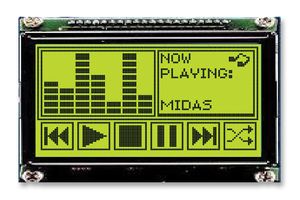

MC128064F6W7-SPTLY-V2
Graphic LCD, 128 x 64 Pixels, Black on Yellow / Green, 5V, Parallel, No Font, Transflective
- Manufacturer:
- MIDAS DISPLAYS MIDAS DISPLAYS
- Manufacturer Part No:
- MC128064F6W7-SPTLY-V2
- Order Code:
- 2675710
- Technical Datasheet:
- MC128064F6W7-SPTLY-V2 Datasheet
Product Overview
The MC128064F6W7-SPTLY-V2 from Midas is a chip on board graphic LCD module. The overall size of module is 63.2mm x 54mm x 9.5mm (W x H x D) with 128 x 64 characters.
- Typical input voltage is 5V
- Supply current is 3.1mA at Vdd = 5V
- Yellow/green transflective STN
- LED Yellow/green backlight
- 6 "o" clock viewing direction
- NT7107C controller
- Operating temperature range from -20°C to 70°C
- 5V logic supply, plus built in negative voltage generator
- 1/64 display duty and 1/9 driving bias
- Yellow/green LED backlight
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 20-way through-hole SIL connection (top, middle) with 2.00mm pitch
- Overall dimensions - 63.2 x 54.0 x 9.5mm
Applications
Imaging, Video & Vision
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 128 x 64 Pixels
- :
- Black on Yellow / Green
- :
- 5V
- :
- Parallel
- :
- No Font
- :
- Transflective
- :
- STN
- :
- 63.2mm x 54mm
- :
- -20°C
- :
- 70°C
- :
- COB
- :
- Yellow / Green
- :
- -
Technical Documents (2)
Contact Sales for a quote
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
€28.76
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
- 5+
- 10+
- 50+
| Quantity | Price | Your Price |
|---|---|---|
| 1+ | €28.76 | |
| 5+ | €26.46 | |
| 10+ | €23.62 | |
| 50+ | €22.05 | |
