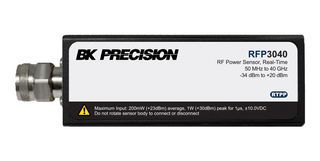

Sensor de Potencia RF, 50MHz a 40GHz, -34dBm a +20dBm, 100000 lecturas / segundo, Macho de 2,92mm


La imagen solo tiene fines ilustrativos. Consulte la descripción del producto.

Referencia del fabricante:
Código Farnell:
Hoja de datos técnicos:
RFP3040   Ficha de datos
Vea todos los documentos técnicos

Selector de la gama de productos (RFP3000)

Vea todos los productos de esta gama

Información del producto

¿Quiere ver productos similares? Simplemente seleccione los atributos requeridos y presione el botón ×

50MHz a 40GHz

-34dBm a +20dBm

100000 lecturas / segundo

Macho de 2,92mm


Encontrar productos similares Seleccione y modifique los atributos anteriores para encontrar productos similares.

Documentos técnicos (1)

Descarga en CAD


Términos y condiciones

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Aceptar Cancelar

Resumen del producto

RFP3000 series RF peak power sensors are the performance leaders in the peak power measurement segment. Each sensor utilizes real-time processing and enhanced hardware triggering to capture even the most elusive signals. The RFP3000 Series specifications are impressive, offering best in class video bandwidth, rise times and time resolution. The sensors, in combination with the included power analyser software measure pulsed, bursted, and modulated signals used in commercial and military radar, electronic warfare (EW), wireless communications (e.g., LTE, LTE-A, and 5G), consumer electronics (WLAN and Wi-Fi 6), as well as education and research applications. The RFP3000 series is powered by the host computer's USB port. The power analyser software takes full advantage of the sensor's capabilities to perform peak power measurements in real-time and can be installed on additional workstations as needed. It has a dimensions of (H x W x D) 1.7" x 1.7" x 5.7" (4.3cm x 4.3cm x 14.5cm).
  • RF frequency range from 50MHz to 40GHz
  • Real time power processing, superior 100ps time base resolution
  • Powered by host USB connection, no need for external power supply
  • SeaLATCH brand USB cable provides a reliable connection
  • Acquisition rate up to 100MSPS supporting 50 points per division
  • Outstanding hardware trigger control with low jitter < 100ps jitter, rms
  • Trigger hold off for bursted waveforms such as TDMA or GSM
  • Two adjustable markers with automatic measurement
  • 16 automated pulse measurements, crest factor and statistical measurements (CCDF)
  • Includes B&K Precision's Power Analyser software for advanced measurement and analysis


RF peak power sensor, 0.9m BNC (m) to SMB (m) cable, 0.9m SMB (m) to SMB (m) cable, 1.8m USB A (m) to USB B (m) locking SeaLATCH cable, Power cord, Test report and certificate of calibration.
